Dead End: The Intel iAPX 432
Abstract
The iAPX 432 was supposed to be Intel’s real future: a 32-bit “micromainframe” with object-oriented memory protection and garbage collection built into the silicon, designed from 1975 as the grand successor to the 8-bit era. It shipped in 1981, ran a quarter as fast as Intel’s own 80286, and was discontinued within five years. The stopgap chip Intel had rushed out while waiting for it, the 8086, became the x86 architecture that still runs most of the world’s PCs and servers. Intel’s most ambitious design lost to its own placeholder.
The Grand Design
Intel began the project in 1975 under the name 8800, positioned as the company’s leap past the 8080: not another incremental microprocessor but a “micromainframe” bringing capabilities of large systems onto chips. The architecture was radical on nearly every axis. It was a stack machine with no general-purpose registers visible to the programmer. Memory was organized as objects with capability-based addressing, so the hardware itself enforced which code could touch which data, a protection model academia had explored for years (high-assurance systems pursued similar ideas). Garbage collection ran in hardware using a mark-and-sweep scheme. Instructions were bit-aligned and variable-length, from 6 to 321 bits. The intended programming language was Ada, then expected to become the dominant language of serious software.

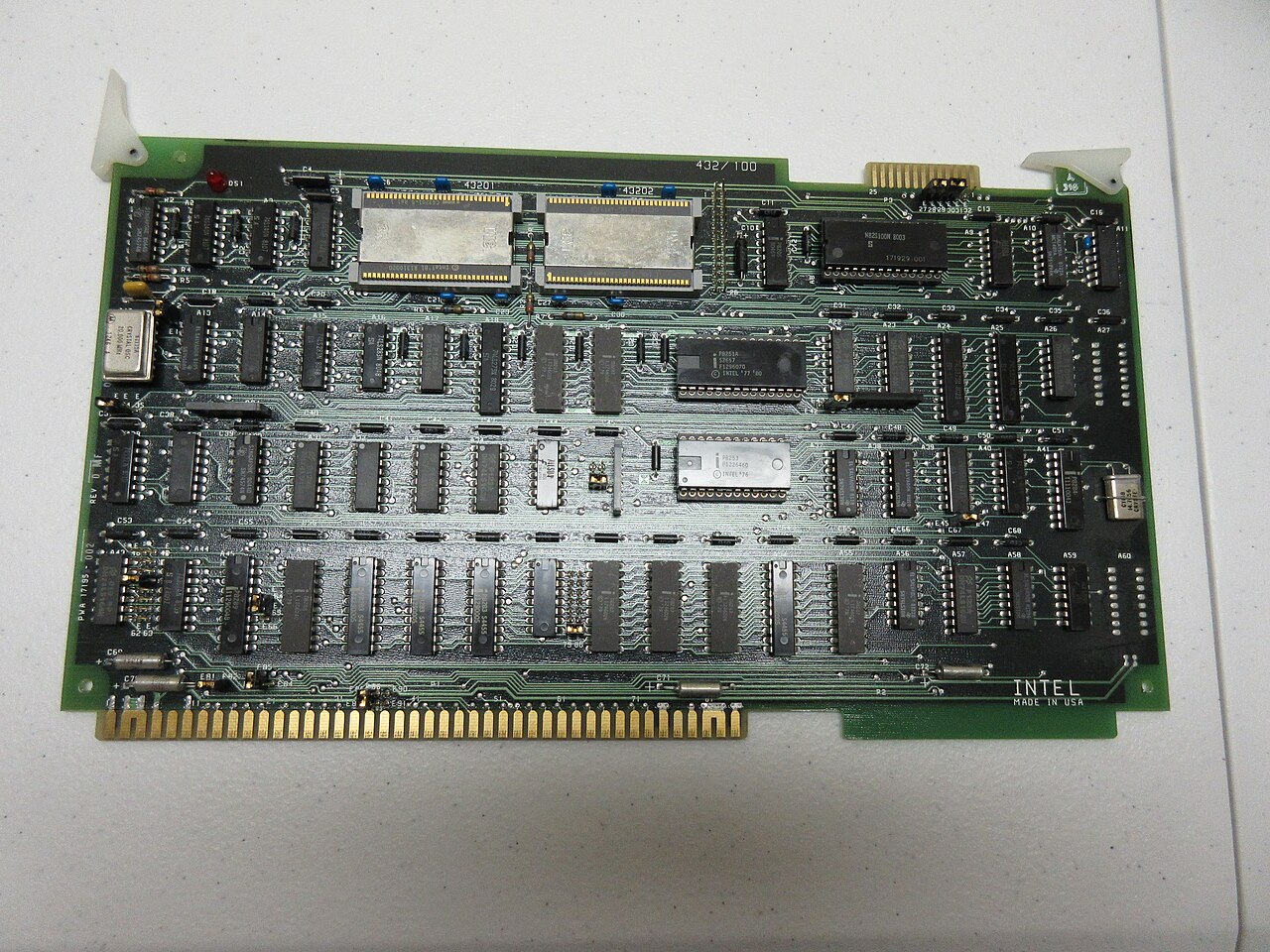

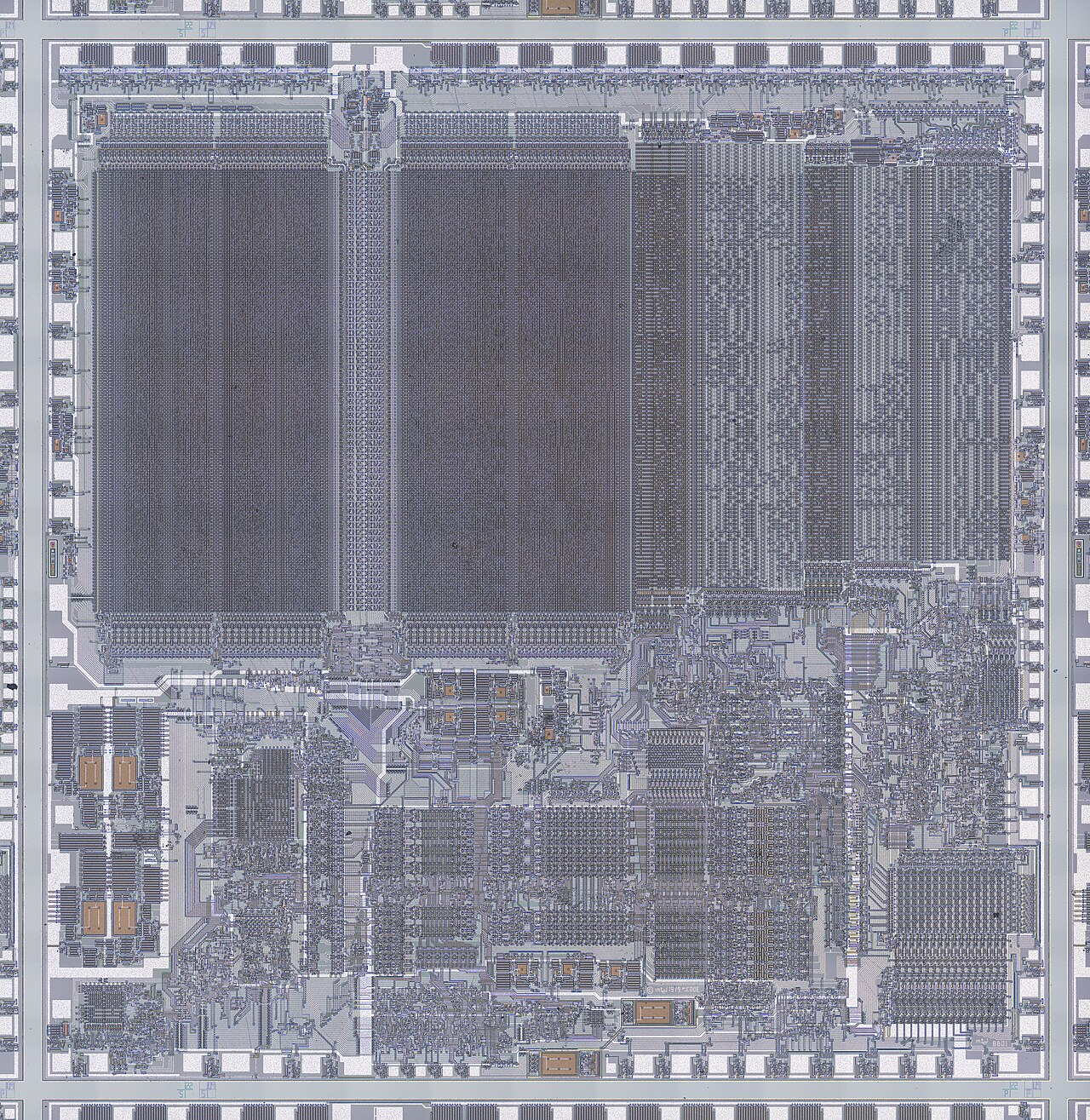

The design outgrew any single die of the era. The General Data Processor alone spanned two chips (the 43201 for instruction fetch and decode, the 43202 for execution), with a separate 43203 interface processor for I/O and further chips for multiprocessor support.
The project also ran late, and the delay produced the twist the 432 is remembered for. When Zilog’s Z80 began eating Intel’s 8-bit sales, the company assigned a separate team to produce a quick, conservative 16-bit stopgap. That chip, the 8086, shipped in 1978, was picked up by IBM for its PC in 1981 in the 8088 variant (The IBM PC), and became the x86 line. The placeholder was the company’s future; nobody at Intel knew it yet.
The Performance Disaster
The iAPX 432 launched in late 1981 at 4 to 8 MHz, below its 10 MHz design target. Benchmarks in early 1982 put it at roughly one quarter the speed of the 80286 at the same clock; against the Motorola 68000 it ran five to ten times slower. For a chip five years in the making and priced as a premium product, the numbers were fatal.
The causes stacked on top of each other. Splitting the processor across two chips throttled it to motherboard wiring speeds. The capability checks needed large associative caches that the transistor budget, already consumed by the baroque bit-aligned instruction decoder, could not supply. The immature Ada compiler generated the most expensive object-oriented instruction sequences for ordinary operations, and its procedure calls passed parameters by value-return, which in one analysis took ten times longer than all other computation combined. The architecture was not slow because the ideas were absurd; it was slow because every idea cost silicon and cycles the technology of 1981 could not pay for.
Intel discontinued the 432 around 1985–86. Andy Grove, running operations while the project consumed the company’s research ambitions, later admitted in an interview that he had been slow to care about microprocessors at all: “I was running an assembly line designed to build memory chips. I saw the microprocessor as a bloody nuisance.”
What Survived

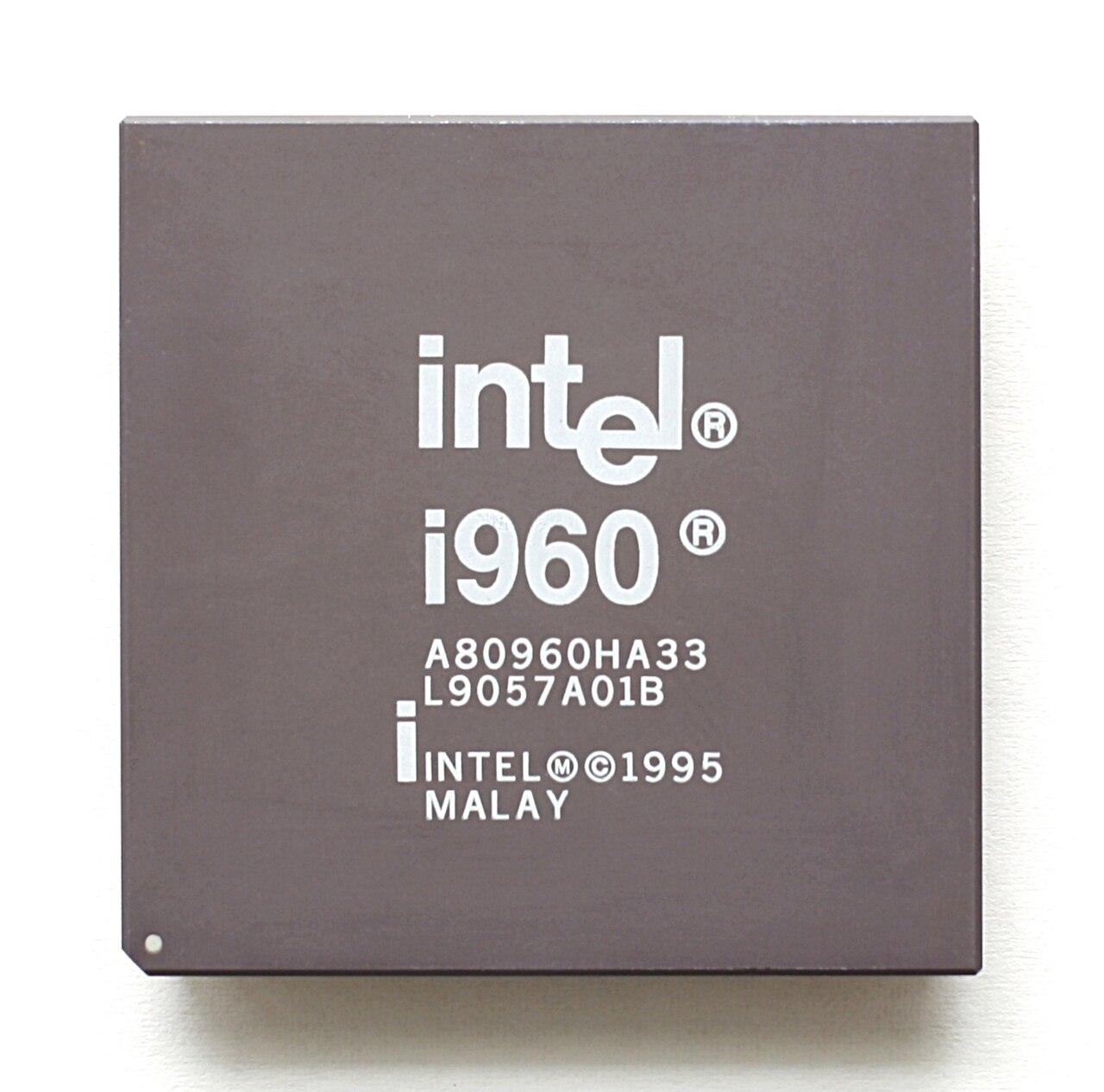

The people and the ideas outlived the product. Project veterans, including lead engineer Justin Rattner (later Intel’s CTO) and architect Fred Pollack, carried the work into a joint venture with Siemens called BiiN, whose processor became the i960, for years a successful embedded chip. The protection concepts resurfaced decades later in hardware capability research such as CHERI. And Intel repeated the pattern, betting on a clean-sheet architecture that benchmarks would humble, with Itanium (Dead End: Intel Itanium). Both times, x86, the architecture Intel never planned as its flagship, absorbed the failure and kept the company rich (Andy Grove and Intel, The Semiconductor Race).
